Localizer

The localizer package takes in a darknet image with bounding boxes and outputs relative poses of objects to the mapper. It consists of a client script and classical cv analyzing rosservers. It can be configured via the _object_localizers_ tag in mission_config.yaml.

Launching

roslaunch localizer localizer.launch

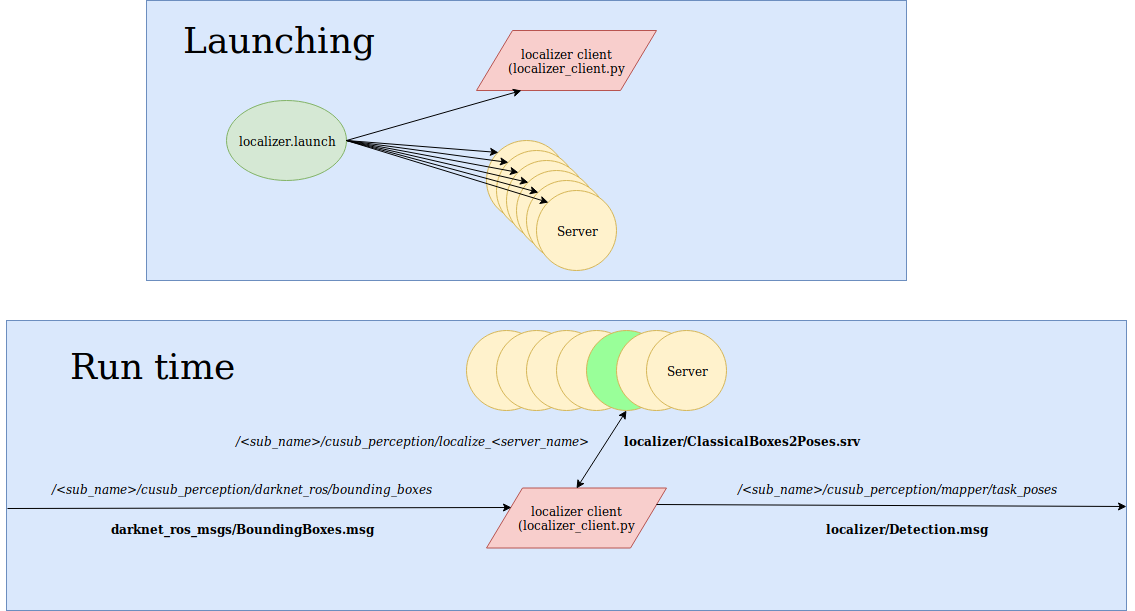

Structure and Functionality

In this section, when we say “localizer” we are referring to the localizer client. Upon receiving a BoundingBoxes.msg from darknet_ros the localizer loops through each box. It does a lookup in the rosparameter server to determine which servers it can use to localize a particular class. It creates requests for all of these servers. If 2+ classes indicate they use the same server, it will combine their requests into one request.

It will then send these requests to each rosserver. If multiple servers are provided for a particular class, it will send each request in the order listed in the mission_config.yaml file. The rosservers will take in the image and the bounding box(es) and attempt via classical cv methods to create a relative pose of the object.

If the rosserver fails, it will return a “Failed” string in the Classical2Boxes response. The localizer will then proceed to interrogate the next server it knows it can use to localize that class. If the localizer receives an object class, it will publish the relative pose as a detection msg to the mapper and cancel all future server requests of that particular class.

Configuration

In mission_config/config/mission_config.yaml, in a class’s object_localizer tag, provide the darknet class and server or list of servers (in order of priority) for the localizer client to call. Example:

tasks:
 start_gate:
  prior: [4,-1,-1.5]
  search_alg: simple
  dist_behind_gate: 1.0
  failed_repeat: true   # If aborted, repeat the task?
  object_localizers:
    start_gate_pole: ['gate_pnp_color', 'gate_midpoint']

 dice:
  prior: [1,1,-1]
  search_alg: simple
  failed_repeat: false
  object_localizers:
    dice1: dice_box
    dice2: dice_box
    dice5: dice_box
    dice6: dice_box
mission_tasks: # Tasks To Do In Order
 - start_gate

Writing a New Server

There are 2 parts to localizing server: ros front end and image analyzing backend. The ros front end is located in localizer/scripts/<class>_servers/. It will receive a ClassicalBoxes2Poses.msg and use its image analyzing backend (located in localizer/src/classical_cv/) to locate its object. We recommend writing the backend first to prototype your classical cv method. Try to keep pixel analysis solely in the backend. For example, if using the popular pnp technique then your backend may find pixels while your front end calls cv2.solvePnP and returns the pose.

Reference

Localizer

namespace localizer_ns

class Localizer : public Nodelet

Private Functions

void loadRosParams(ros::NodeHandle &nh)

void darknetCallback(const darknet_ros_msgs::BoundingBoxesPtr bbs)

bool checkBox(const darknet_ros_msgs::BoundingBox &bb)

void cuprint(std::string str)

void cuprint_warn(std::string str)

jiangshi_watershed

namespace pose_generator

class JiangshiWatershed : public pose_generator::PoseGenerator

Private Functions

void getOrientationFromAspectRatio(const darknet_ros_msgs::BoundingBox &bb, float horizontalDist, geometry_msgs::Quaternion &quat)

bool getPoints(Mat &img, int border_size, vector<Point2f> &points)

void sortPoints(Mat &img, vector<Point2f> &points)

bool checkBoxes(const vector<darknet_ros_msgs::BoundingBox> &bbs, int border_size)

pose_generator

namespace pose_generator

class PoseGenerator

start_gate_hough

namespace pose_generator

class StartGateHough : public pose_generator::PoseGenerator

Private Functions

void sortBoxes(vector<darknet_ros_msgs::BoundingBox> &bbs)

bool getPoints(Mat &img, vector<Point2f> &points)

void publishLegSide(vector<darknet_ros_msgs::BoundingBox> &bbs)
